奧美格電動汽車充電電纜
-
奧美格電動汽車高壓電纜
UL758高壓電纜
電器設備用裝置線AC 1000V和AC 1500V (Appliance Wiring Material for AC 1000V and AC 1500V)
參考標準Reference Standard: UL 758
UL證書編號Certificate number: E323711
E-MARK批準號Approval No: E24*118R03/01*0375*00
產品描述 Product description:
| 結構 Construction | 電纜特性 Features |
| 1、導體Conductor1 | 1、額定溫度Rated Temperature：-40℃-+125℃ |
| 材質Material: 裸銅Bare Copper | 2、額定電壓Rated Voltage：Optional 1000V AC or 1500V AC |
| 2、絕緣Insulation | 3、老化試驗Aging：158℃*168h，comply with UL 758 |
| 材質Material: XLPE | 4、耐壓試驗Dielectric Voltage：3000V AC*1min |
| 顏色Color:橙色Orange | 5、熱變形試驗Deformation Test：121℃*4h，comply with UL 758 |
| 3、屏蔽Shielded | 6、燃燒試驗Flame Test：VW-1，comply with UL 758 |
| 材質Material:鍍錫銅Tinned Copper | 7、冷彎試驗Cold Bend Test：-40℃*4h，comply with UL 758 |
| 4、護套Sheath | 8、環保要求Environmental Requirements：Compliant with RoHS 2.0 and REACH |
| 材質Material: XLPE | 9、抗撕裂性能Anti-tear Performance ：>20N/mm |
| 顏色Color:橙色Orange | 10、最小彎曲半徑Min Bending Radius：4*OD |

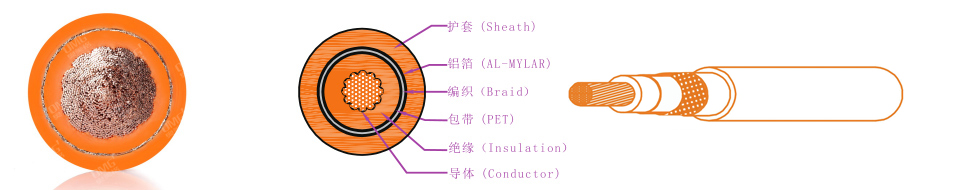

單芯屏蔽線纜（Single core shielded cable）
| 產品系列 Product Series |
規格 Size |
導體絞合外徑 Conductor Stranded OD mm ( Ref.) |
導體電阻 Max. Conductor resistance mΩ/m@20℃ |
參考允載電流 Permissible ampacity A (Ref.) |
完成外徑 Over diameter mm (Ref.) |
| UL 30088 for 1000V | 16AWG | 1.5 | 14.1 | 15 | 5.6 |
| 15AWG | 1.7 | 11.2 | 20 | 5.7 | |
| 14AWG | 1.9 | 8.88 | 24 | 5.8 | |
| 13AWG | 2.1 | 7.02 | 28 | 5.8 | |
| 12AWG | 2.8 | 5.58 | 34 | 6.7 | |
| 11AWG | 3.0 | 4.43 | 39 | 6.9 | |
| 10AWG | 3.3 | 3.51 | 45 | 7.2 | |
| 9AWG | 3.7 | 2.78 | 53 | 7.6 | |
| 8AWG | 4.2 | 2.23 | 64 | 8.8 | |
| 7AWG | 4.8 | 1.77 | 75 | 9.4 | |
| 6AWG | 5.4 | 1.40 | 85 | 10.0 | |
| 5AWG | 6.0 | 1.11 | 100 | 12.1 | |
| 4AWG | 6.6 | 0.882 | 115 | 12.2 | |
| 3AWG | 7.4 | 0.7 | 135 | 13.0 | |
| 2AWG | 8.4 | 0.555 | 160 | 13.6 | |
| 1AWG | 9.4 | 0.44 | 175 | 15.0 | |
| 以上產品規格、尺寸、結構可能因為技術進步而有所改變，同類規格可根據客戶使用需求進行設計制造。 The specification, size, structure of above product may be changed due toTechnical progress, similar specifications are available according to customer’s requirements | |||||

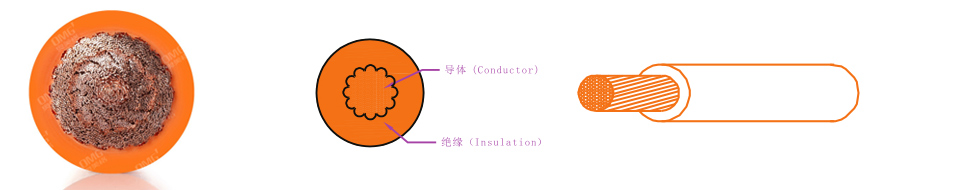

單芯非屏蔽線纜（Single core unshielded cable）
| 產品系列 Product Series |
規格 Size |
導體絞合外徑 Conductor Stranded OD mm ( Ref.) |
導體電阻 Max. Conductor resistance mΩ/m@20℃ |
參考允載電流 Permissible ampacity A (Ref.) |
完成外徑 Over diameter mm (Ref.) |
| UL 3820 for 1000V UL 3886 for 1500V |
16AWG | 1.5 | 14.1 | 15 | 3.4 |
| 15AWG | 1.7 | 11.2 | 20 | 3.5 | |
| 14AWG | 1.9 | 8.88 | 24 | 3.6 | |
| 13AWG | 2.1 | 7.02 | 28 | 3.8 | |
| 12AWG | 2.8 | 5.58 | 34 | 4.5 | |
| 11AWG | 3.0 | 4.43 | 39 | 4.7 | |
| 10AWG | 3.3 | 3.51 | 45 | 5.0 | |
| 9AWG | 3.7 | 2.78 | 53 | 5.4 | |
| 8AWG | 4.2 | 2.23 | 64 | 6.6 | |
| 7AWG | 4.8 | 1.77 | 75 | 7.2 | |
| 6AWG | 5.4 | 1.40 | 85 | 7.8 | |
| 5AWG | 6.0 | 1.11 | 100 | 8.4 | |
| 4AWG | 6.6 | 0.882 | 115 | 9.0 | |
| 3AWG | 7.4 | 0.7 | 135 | 9.4 | |
| 2AWG | 8.4 | 0.555 | 160 | 10.8 | |
| 1AWG | 9.4 | 0.44 | 175 | 12.4 | |
| 以上產品規格、尺寸、結構可能因為技術進步而有所改變，同類規格可根據客戶使用需求進行設計制造。 The specification, size, structure of above product may be changed due toTechnical progress, similar specifications are available according to customer’s requirements |
|||||
