奧美格電動汽車充電電纜
-
奧美格電動汽車高壓電纜
歐標EN、IEC標準充電電纜
歐州EN50620、IEC62893標準電動汽車充電電纜
參考標準：EN 50620:2017、IEC62893-3：2017
證書號：DEKRA 31-112985、DEKRA 31-111496、TUV R50436193 0001、TUV R50436194 0001

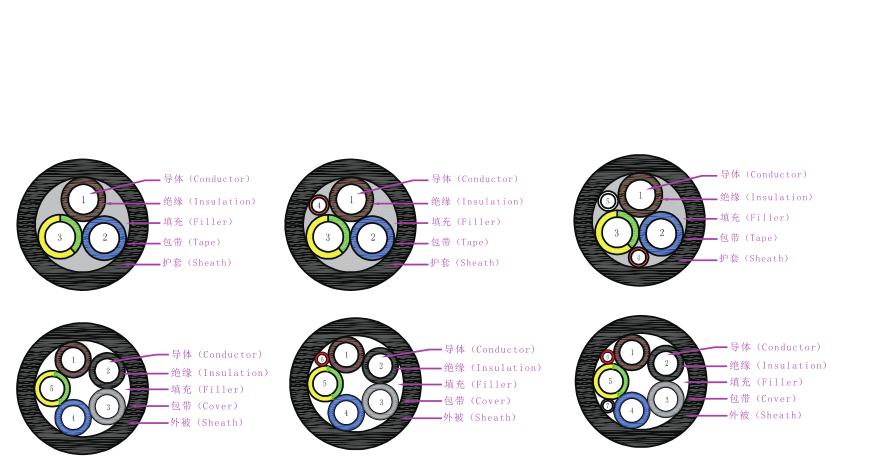

產品描述Product description:
| 結構Construction | 電纜特性 Features |
| 1.導體Conductor | 額定溫度Rated temperature ：-40℃～90℃ |
| 材質Material: 裸銅Bare Copper | 額定電壓Rated Voltage ： AC 300/500V、 450/750V；DC 1000V |
| 2.絕緣Insulation | 燃燒測試Flame Test ：Testing method according to EN 60332-1-2 |
| 材質Material: EVI-2 | 最小彎曲半徑Min： Bending Radius: ≥6*OD |
| 顏色Color：棕 Brown，藍Blue，黃/綠Yellow/Green | 耐壓Dielectric Voltage ：2.5 kV AC for main core , 2.0 kv AC for CC/CP |
| 3.填充Filler | 低溫沖擊Low temperature impact ：-40℃, No cracks |
| 材質Material: PP Cord | 熱沖擊Hot Shock：150℃/1h No cracks |
| 4.包帶Tape | 耐油Oil Resistance ：IRM902, 100℃*168h Tensile Strength Variation ＜±40%，Elongation Variation＜±30% |
| 材質Material:無紡布Non-woven fabrics | 抗擠壓Crush resistance：Sq≤4, crush force≥4KN ; 4≤Sq≤35, crush force≥11KN; |
| 5.護套Sheath | 耐酸堿Resistance to Acid and alkali：168h, Tensile Strength Variation ≤30%; Elongation≥100% |
| 材質Material: TPU | 環保要求Environmental Requirements：Compliant with RoHS and REACH |
| 顏色Color: 任意顏色 Any color |
| 型號 | 規格 | 導體絞合外徑 | 導體電阻 | 參考允載電流 | 無屏蔽 完成外徑 | 包裝 |
H05BZ-F 62893IEC121 |
3×1.5mm2+(0～6)×(0.5～1.0)mm2 | 1.6 | 13.3 | 10A | 8.6~9.6 | 800m/700# |
| 3×2.5mm2+(0～6)×(0.5～1.0)mm2 | 2.1 | 7.98 | 16A | 9.8~10.8 | 800m/700# | |
H07BZ-F 62893IEC121 |
3×1.5mm2+(0～6)×(0.5～1.0)mm2 | 1.6 | 13.3 | 10A | 8.8~9.6 | 800m/700# |
| 3×2.5mm2+(0～6)×(0.5～1.0)mm2 | 2.1 | 7.98 | 16A | 10~10.8 | 800m/700# | |
| 3×4.0mm2+(0～6)×(0.5～1.0)mm2 | 2.8 | 4.95 | 20A | 11.5 | 500m/700# | |
| 3×6.0mm2+(0～6)×(0.5～1.0)mm2 | 3.5 | 3.30 | 32A | 13.2 | 400m/800# | |
| 3×10.0mm2+(0～6)×(0.5～1.0)mm2 | 4.5 | 1.91 | 40A | 16.3 | 500m/950# | |
| 3×16mm2+(0～6)×(0.5～1.0)mm2 | 5.7 | 1.21 | 63A | 19 | 500m/700# | |
| 5×2.5mm2+(0～6)×(0.5～1.0)mm2 | 2.1 | 7.98 | 16A | 13.5 | 500m/950# | |
| 5×4.0mm2+(0～6)×(0.5～1.0)mm2 | 2.8 | 4.95 | 20A | 15 | 400m/950# | |
| 5×6.0mm2+(0～6)×(0.5～1.0)mm2 | 3.5 | 3.30 | 32A | 16.8 | 300m/950# | |
| 5×10.0mm2+(0～6)×(0.5～1.0)mm2 | 4.5 | 1.91 | 40A | 20 | 300m/1200# | |
| 5×16mm2+(0～6)×(0.5～1.0)mm2 | 5.7 | 1.21 | 63A | 23.5 | 800m/700# | |
| 5×25mm2+(0～6)×(0.5～1.0)mm2 | 7.2 | 0.78 | 80A | 29 | 800m/700# | |
| 5×35mm2+(0～6)×(0.5～1.0)mm2 | 8.4 | 0.554 | 125A | 32.8 | 500m/700# |
以上產品規格、尺寸、結構可能因為技術進步而有所改變，同類規格可根據客戶使用需求進行設計制造。
TUV認證交流彈簧充電電纜EN50620和IEC62893彈簧線
證書號：R 50436193 0002
| Spring cable | 規格 Size |
導體絞合外徑 Conductor Stranded OD Ref. mm |
導體電阻 Max. Conductor resistance mΩ/m@20℃ |
參考允載電流 Permissible ampacity@20℃ ambient Ref. |
無屏蔽完成外徑 Non-shielded Over diameter mm Ref. |
包裝 Packing M/Reel(Ref.) |
| EVC H05BZ5H8-F Extensible 62893 IEC 121 | 3×1.5mm2+(0～6)×(0.5～1.0)mm2 | 1.6 | 13.3 | 10A | 10.0 | TBD |
| 3×2.5mm2+(0～6)×(0.5～1.0)mm2 | 2.1 | 7.98 | 16A | 11.2 | TBD | |
| EVC H05BZ5H8-F Extensible 62893 IEC 121 | 3×1.5mm2+(0～6)×(0.5～1.0)mm2 | 1.6 | 13.3 | 10A | 10.0 | TBD |
| 3×2.5mm2+(0～6)×(0.5～1.0)mm2 | 2.1 | 7.98 | 16A | 11.2 | TBD | |
| 3×4mm2+(0～6)×(0.5～1.0)mm2 | 2.8 | 4.95 | 20A | 12.5 | TBD | |
| 3×6mm2+(0～6)×(0.5～1.0)mm2 | 3.2 | 3.3 | 32A | 13.3 | TBD | |
| 5×2.5mm2+(0～6)×(0.5～1.0)mm2 | 2.1 | 7.98 | 16A | 13.3 | TBD | |
| 5×4mm2+(0～6)×(0.5～1.0)mm2 | 2.8 | 4.95 | 20A | 15.5 | TBD | |
| 5×6mm2+(0～6)×(0.5～1.0)mm2 | 3.2 | 3.3 | 32A | 16.5 | TBD | |
| 產品的具體參數以技術圖紙為準(上表中的完成外徑為1根0.75mm2信號線的外徑)。 The specific parameters of product should be according to technical drawings. | ||||||
TUV認證IEC62893直流充電電纜
參考標準：IEC62893-4-1:2020
證書號 R 50438281 0001
| 型號 | 規格 | 導體絞合外徑 | 導體電阻 | 參考允載電流 | 無屏蔽完成外徑 | 包裝 |
| 62893 IEC 126 | 2×10+10+P(2×0.75)+4×0.5 | 4.5 | 1.91 | 40A | 15.5 | 300m/950# |
| 2×16+16+P(2×0.75)+4×0.5 | 5.7 | 1.21 | 63A | 18 | 300m/950# | |
| 2×25+16+P(2×0.75)+4×0.5 | 7.1 | 0.78 | 100A | 24.5 | 300m/950# | |
| 2×35+16+P(2×0.75)+4×0.5 | 8.4 | 0.554 | 125A | 25.8 | 300m/950# | |
| 2×50+25+P(2×0.75)+4×0.5 | 10.2 | 0.386 | 150A/200A | 30.2 | 400m/1200# | |
| 2×70+35+P(2×0.75)+4×0.5 | 12.0 | 0.272 | 200A/250A | 34.7 | 400m/1200# | |
4×50+50+6×0.75 |
10.0 | 0.386 | 300A/350A | 38.5 | 300m/1200# | |
4×60+70+6×0.75 |
11 | 0.319 | 350A/400A | 43.5 | 200m/1200# | |
| 規格為2芯電源線4mm2~95mm2或4芯電源線50mm2~260mm2，1芯PE線4mm~70mm，輔助電源線為2芯2.5~6.0mm（可選）可以增加0~12芯0.5mm~1.0mm的信號線，可以信號線屏蔽或總纜屏蔽，產品的具體參數以技術圖紙為準。 Specifications: 2-core power cable 4mm2 to 95mm2 or 4-core power cable 50mm2 to 260mm2, 1-core PE cable 4mm to 70mm, 2-core auxiliary power cable 2.5 mm to 6.0mm (optional) 0-12 core signal cable 0.5mm to 1.0mm can be added, the signal cable can be shielded or the main cable can be shielded. Specific product parameters shall be subject to the technical drawings. |
||||||
