奧美格電動汽車充電電纜
-
奧美格電動汽車高壓電纜
新國標直流充電電纜
新國標CQC認證直流充電電纜
參考標準Reference Standard：GB/ T33594-2017
CQC證書號CQC Certificate No.:V022173

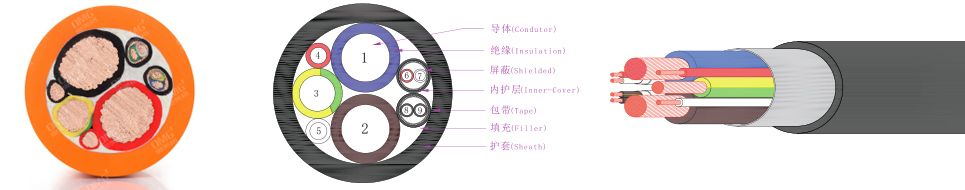

| 結構Construction | 電纜特性 Features： |
| 1.導體Conductor | 額定溫度Rated temperature：-40℃～90℃ |
| 材質Material: 裸銅Bare Copper | 額定電壓Rated Voltage：DC 1000V |
| 2.絕緣Insulation | 絕緣電阻Insulation Resistance ：≥3670MΩ.km at 20℃ Comply with GB/ T33594-2017 |
| 材質Material: TPE | 燃燒測試Flame Test： GB/T 18380.12-2008 |
| 顏色Color：棕 Brown，藍Blue，黃/綠Yellow/Green | 最小彎曲半徑Min Bending Radius: ≥6*OD |
| 3.填充Filler | 耐壓Dielectric Voltage： 8.4kVdc/15min. No Breakdown |
| 材質Material: PP Cord | 低溫沖擊Low temperature impact ：-40℃, No cracks |
| 4.包帶Tape | 熱沖擊Hot Shock ：150℃/1h No cracks |
| 材質Material:無紡布Non-woven fabrics | 耐油Oil Resistance ：IRM902,IRM903,Gasoline 20h OD Variation≤15% No Cracks |
| 5.護套Sheath | 抗擠壓Crush resistance ：4≤Sq≤35, crush force≥11KN ; Sq＞35, crush force≥15KN; |
| 材質Material: TPE or TPU | 耐酸堿Resistance to Acid and alkali：168h, Tensile Strength Variation ≤30%; Elongation≥100% |
| 顏色Color: 黑色Black | 環保要求Environmental Requirements：Compliant with RoHS and REACH |
| 型號 | 規格 | 導體絞合外徑 | 導體電阻 | 參考允載電流 | TPE護套無屏蔽完成外徑 | 包裝 | PU護套無屏蔽完成外徑 PU | 包裝 |
EVDC-RSS EVDC-RSSPS EVDC-RS90S90EVDC-RS90S90PS90 EVDC-RS90UEVDC-RS90S90U |
2×16mm2+16mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 5.7 | 1.21 | 63A | 30 | 300m/950# | 28.5 | 300m/950# |
| 2×20mm2+25mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 6.3 | 0.968 | 80A | 33 | 400m/1200# | 31.5 | 400m/1200# | |
| 2×25mm2+25mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 7.2 | 0.78 | 100A | 34 | 400m/1200# | 32 | 400m/1200# | |
| 2×35mm2+25mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 8.4 | 0.554 | 125A | 36 | 400m/1200# | 34 | 400m/1200# | |
| 2×50mm2+25mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 10.2 | 0.386 | 150/200A | 38 | 300m/1200# | 36 | 300m/1200# | |
| 2×70mm2+25mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 12.0 | 0.272 | 200/250A | 40.5 | 250m/1200# | 38 | 300m/1200# | |
| 2×80mm2+25mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 12.8 | 0.238 | 250A | 42 | 200m/1200# | 39 | 250m/1200# | |
| 2×95mm2+25mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 14.3 | 0.206 | 300A | 44 | 200m/1200# | 41.5 | 200m/1200# | |
|
EYU
|
2×10mm2+10mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 4.5 | 1.91 | 40A | 26 | 300m/950#
|
||
| 2×16mm2+16mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 5.7 | 1.21 | 63A | 28.5 | 300m/950#
|
|||
| 2×20mm2+25mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 6.3 | 0.968 | 80A | 31.5 | 400m/1200#
|
|||
| 2×25mm2+25mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 7.2 | 0.78 | 100A | 32 | 400m/1200# | |||
| 2×35mm2+25mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 8.4 | 0.554 | 125A | 34 | 400m/1200# | |||
| 2×50mm2+25mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 10.2 | 0.386 | 150/200A | 36 | 300m/1200# | |||
| 2×70mm2+25mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 12.0 | 0.272 | 200/250A | 38 | 300m/1200# | |||
| 2×80mm2+25mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 12.8 | 0.238 | 250A | 39 | 250m/1200# | |||
| 2×95mm2+25mm2+2×4.0mm2+2P(2×0.75mm2)+P(8X0.75 mm2) | 14.3 | 0.206 | 300A | 41.5 | 200m/1200# | |||
| 規格為2芯16mm2～95mm2，低壓輔助電源為2芯4.0～6.0mm2，可以增加1～15芯0.75mm2～2.5mm2的信號線，可信號線屏蔽或總纜屏蔽，產品的具體參數以技術圖紙為準。 | ||||||||
