奧美格電動汽車充電電纜
-
奧美格電動汽車高壓電纜
美標UL認證充電電纜
美洲UL認證充電電纜
參考標準Reference Standard：UL2263
UL檔案號.UL File No.:E345899

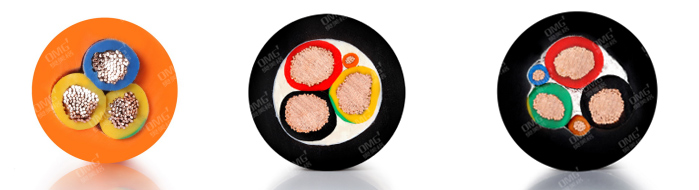

| 結構Construction | 電纜特性 Features |
| 1.導體Conductor | 額定溫度Rated temperature：-40℃～105℃ |
| 材質Material: 裸銅Bare Copper | 額定電壓Rated Voltage：300V；600V or 1000V |
| 2.絕緣Insulation | 燃燒測試Flame Test： VW-1 Test method Comply with UL 2556 |
| 材質Material: TPE | 最小彎曲半徑Min： Bending Radius: ≥6*OD |
| 顏色：黑Black，紅red，綠/黃Green/Yellow或其他or other | 耐壓Dielectric Voltage： 1.5kVac/1min. No Breakdown Test method Comply with UL 2556 |
| 3.填充Filler | 低溫彎曲Cold Bending：-40℃/4h No cracks Test method Comply with UL 2556 |
| 材質Material: PP hemp or cotton yarn | 熱沖擊Hot Shock：150℃/1h No cracks Test method Comply with UL 2556 |
| 4.包帶Tape | 耐油Oil Resistance：IRM902, 60℃/168h Tensile and Elongation ≥70% Unaged value |
| 材質Material:無紡布Non-woven fabrics | 耐碾壓 Crush Resistance：S≤12AWG 4.45kN, 12AWG＜S≤2AWG, 11.1kN, 2AWG＜S 15.6kN |
| 5.護套Sheath | 耐氣候Weather Resistance：720hin a xenon arc weatherometer, No cracks |
| 材質Material: TPE | 環保要求Environmental Requirements：Compliant with RoHS 2.0 and REACH |
| 顏色Color: 黑色或橙色Black or Orange |
| 型號 Type |
規格
Size |
導體絞合外徑
Conductor Stranded OD mm Ref. |
導體電阻
Max. Conductor resistance mΩ/m@20℃ |
參考允載電流
Permissible ampacity@20℃ ambient Ref. |
完成外徑
Over diameter Ref. mm |
包裝
Packing M/Reel (Ref.) |
| 600V or 1000V EVE(TPE) | 3×16AWG | 1.5/1.2 | 14.1 | 12A | 10.8±0.5 | 1000m/700# |
| 3×14AWG | 1.9/1.2 | 8.88 | 16A | 11.8±0.5 | 800m/700# | |
| 3×12AWG | 2.4/1.2 | 5.58 | 23A | 14.3±0.5 | 500m/700# | |
| 3×10AWG | 3.0/1.2 | 3.51 | 32A | 15.6±0.5 | 500m/700# | |
| 2×8AWG+10AWG | 4.3/3.0 | 2.23/3.51 | 46A | 20.9±0.8 | 500m/950# | |
| 2×6AWG+8AWG | 5.4/4.3 | 1.40/2.23 | 63A | 23.4±0.8 | 400m/950# | |
| 3×16AWG+1×18AWG | 1.5/1.2 | 14.1/22.4 | 12A | 11.4±0.5 | 800m/700# | |
| 3×14AWG+1×18AWG | 1.9/1.2 | 8.88/22.4 | 16A1 | 13.5±0.5 | 500m/700# | |
| 3×12AWG+1×18AWG | 2.4/1.2 | 5.58/22.4 | 23A | 14.5±0.5 | 500m/700# | |
| 3×10AWG+1×18AWG | 3.0/1.2 | 3.51/22.4 | 32A | 15.8±0.6 | 500m/700# | |
| 2×8AWG+10AWG+18AWG | 4.3/3.0 | 2.23/3.51/22.4 | 46A | 20.9±0.8 | 500m/950# | |
| 2×6AWG+8AWG+18AWG | 5.4/4.3 | 1.40/2.23/22.4 | 63A | 23.4±0.8 | 400m/950# | |
| 2×4AWG+6AWG+18AWG | 6.6/5.4 | 0.882/1.4/22.4 | 75A | 27.0±0.9 | 300m/950# | |
| 3×16AWG+2+18AWG | 1.5/1.2 | 3.51/22.4 | 12A | 12.2±0.5 | 500m/700# | |
| 3×14AWG+2+18AWG | 1.9/1.2 | 8.88/22.4 | 16A | 14.1±0.5 | 500m/700# | |
| 3×12AWG+2+18AWG | 2.4/1.2 | 5.58/22.4 | 23A | 15.1±0.6 | 500m/700# | |
| 3×10AWG+2+18AWG | 3.0/1.2 | 3.51/22.4 | 32A | 15.8±0.6 | 500m/700# | |
| 2×8AWG+10AWG+2×18AWG | 4.3/3.0 | 2.23/3.51 | 46A | 20.9±0.8 | 500m/950# | |
| 2×6AWG+8AWG+2×18AWG | 5.4/4.3 | 1.40/2.23 | 63A | 23.4±0.8 | 400m/950# | |
| 2×4AWG+6AWG+2×18AWG | 6.6/5.4 | 0.882/1.4 | 75A | 27.0±0.9 | 300m/950# | |
| 2×2AWG+4AWG+2×18AWG | 8.2/6.6 | 0.555/0.882 | 100A | 30.5±1.0 | 400m/1200# | |
2×1/0AWG+2AWG+4×16AWG
|
10.5/8.2 | 0.349/0.555 | 200A | 38.0±1.0 | 250m/1200# | |
2×3/0AWG+1/0AWG
(2×3/0AWG+4AWG+6X18AWG)
3/0AWG地線最小4AWG
|
13.05/10.5 | 0.219/0.349 | 260A | 45.0±1.0 | 150m/1200# | |
| 4X1-0AWG+4AWG+6X18AWG | 10.4/6.5 | 0.351/0.882/23.6 | 300A/3 | 45.7±1.2 | 150m/1200# | |
| 300V EVJE(TPE) | 3×16AWG | 1.5/1.2 | 3.51/22.4 | 12A | 9.5±0.3 | 1200m/700# |
| 3×14AWG | 1.9/1.2 | 8.88/22.4 | 16A | 10.2±0.5 | 1000m/700# | |
| 3×12AWG | 2.4/1.2 | 5.58/22.4 | 23A | 11.4±0.5 | 800m/700# | |
| 3×16AWG+1×18AWG | 1.5/1.2 | 3.51/22.4 | 12A | 10.5±0.5 | 1000m/700# | |
| 3×14AWG+1×18AWG | 1.9/1.2 | 8.88/22.4 | 16A | 11.1±0.5 | 80m/700# | |
| 3×12AWG+1×18AWG | 2.4/1.2 | 5.58/22.4 | 23A | 12.2±0.5 | 500m/700# | |
| 3×16AWG+2×18AWG | 1.5/1.2 | 3.51/22.4 | 12A | 11.3±0.5 | 800m/700# | |
| 3×14AWG+2×18AWG | 1.9/1.2 | 8.88/22.4 | 16A | 12.0±0.5 | 800m/700# | |
| 3×12AWG+2×18AWG | 2.4/1.2 | 5.58/22.4 | 23A | 13.1±0.5 | 500m/700# | |
| 信號線根數可以為0~6根，或者更多，信號線導體規格可以為16AWG,18AWG,20AWG,22AWG。 | ||||||
以上產品規格、尺寸、結構可能因為技術進步而有所改變，同類規格可根據客戶使用需求進行設計制造。
NACS尼龍電纜
參考標準Reference Standard：UL2263
Certificate Number: E345899
結構Construction |
電纜特性 Features |
1.導體Conductor |
額定溫度Rated temperature：-50℃～105℃ |
材質Material: 裸銅Bare Copper |
額定電壓Rated Voltage：1000V |
2.絕緣Insulation |
導體直流電阻（20°C時）Conductor Resistance（at 20°C）：8AWG≤2.23Ω/km;10AWG≤3.51Ω/km;16AWG≤14.1Ω/km;Test method Comply with UL 2556 |
材質Material: TPE |
15°C絕緣電阻15°C Insulation Resistance：8AWG≥34Ω.m;10AWG≥34Ω.m;16AWG≥45Ω.m;Test method Comply with UL 2556 |
顏色：黑Black，紅red，綠/黃Green/Yellow或其他or other |
耐壓Dielectric Voltage： 4.0kV AC/1min（8AWG）,3.0KV AC/1min（10AWG）, 2.0KV AC/1min（16AWG）. No Breakdown. Test method Comply with UL 2556 |
3.填充Filler |
線纜折彎半徑Bending Radius Min：≥6OD. |
材質Material: PP hemp or cotton yarn |
熱沖擊Hot Shock：150℃/1h No cracks Test method Comply with UL 2556 |
4.包帶Tape |
阻燃測試Flame Test：FT1.Test method Comply with UL 2556 |
材質Material:無紡布Non-woven fabrics |
絕緣抗張強度Insulation tensile strength：Before Aging 5.5Mpa;After Aging（136°C/168H）≥75%Original.Test method Comply with UL 2556 |
5.護套Sheath |
絕緣斷裂伸長率Insulation Elongation：Before Aging200%;After Aging（136°C/168H）≥75%Original.Test method Comply with UL 2556 |
材質Material: TPE |
護套抗張強度Jacket tensile strength：Before Aging 8.3Mpa;After Aging（136°C/168H）≥75%Original.Test method Comply with UL 2556 |
顏色Color: 黑色或橙色Black or Orange |
護套斷裂伸長率Jacket Elongation：Before Aging200%;After Aging（136°C/168H）≥75%Original.Test method Comply with UL 2556 |
|
低溫彎曲測試Cold Bending Test：-40°C/4H,NO Cracking.Test method Comply with UL 2556 |
|
熱沖擊測試Hot Shock Test：150°C/1H,NO Cracking.Test method Comply with UL 2556 |
型號 |
主線+地線規格 |
信號線規格 |
推薦載流 |
完成外徑 |
OMG EVC 1001 |
10AGW/2+10AGW |
22AGW(20AGW/18AGW/16AGW)0-6 |
32A |
12.0±0.5 |
OMG EVC 1002 |
9AGW/2+10AGW |
40A |
13.8±0.5 |
|
OMG EVC 1003 |
8AGW/2+10AGW |
48A |
15.0±0.5 |
|
OMG EVC 1004 |
6AGW/2+8AGW |
80A |
18.9±0.5 |
|
OMG EVC 1005 |
3AGW/4+12AGW(14AGW/10AGW) |
18AGW(20AGW/22AGW)0-8 |
170A(200A) |
28.3±1.0 |
OMG EVC 1006 |
2AGW/4+12AGW(14AGW/10AGW) |
200A(250A) |
31.0±1.0 |
|
OMG EVC 1007 |
1/0AGW/4+12AGW(14AGW/10AGW) |
300A-350A |
36.5±1.0 |
|
OMG EVC 1008 |
4AGW/2+14AGW |
120A |
21.0±1.0 |
|
OMG EVC 1009 |
1AGW/4+14AGW |
|
250A(300A) |
34.0±1.0 |
