日本PSE認證HVCT型電動汽車充電電纜
參考標準：JIS C 3312
証明書番號（聲明編號）：PSE23012360
產品說明：

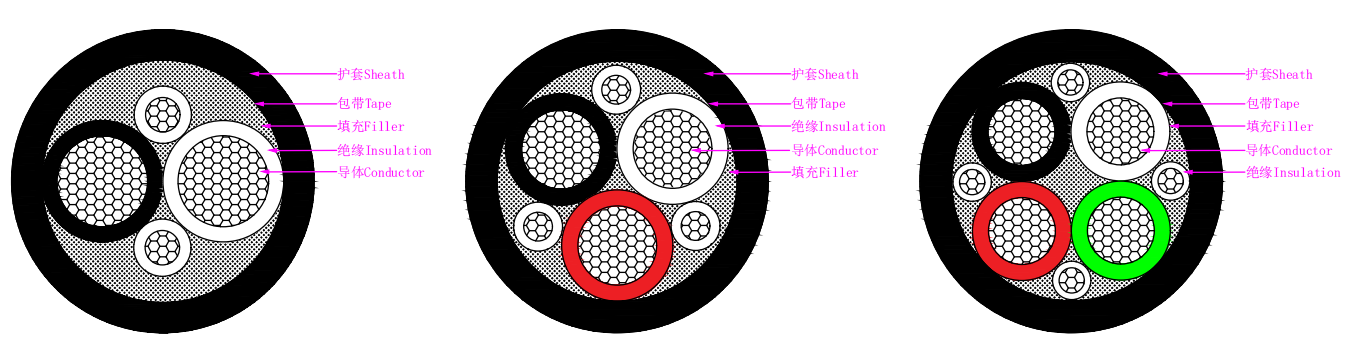

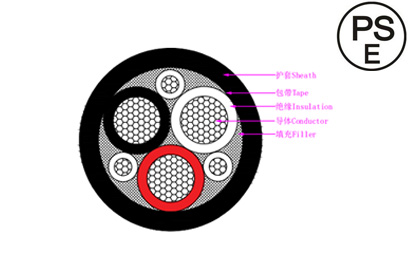

| Construction | Features |
| 1.Conductor | Ambient Temperature ：-30℃～＋40℃ |
| Material: Bare Copper | Rated Voltage ： ≤600V AC , ≤750V DC |
| 2.Insulation | Tensile Strength ：Insulation＞10MPa，after Aging Test（100℃*48H）＞85% |
| Material: PVC | Sheath＞10MPa，after Aging Test（100℃*48H）＞85% |
| Color：Black, White, Red, Green | Elongation at break ： Insulation＞100%，after Aging Test（100℃*48H）＞80% |
| 3.Filler | Sheath＞120%，after Aging Test（100℃*48H）＞80% |
| Material: PPhemp or cotton yarn | Thermal Deformation ：Thickness reduction <50% |
| 4.Tape | Bending Radius ：≥6 OD |
| Material:Non-woven fabrics | Flame Retardant Test：The flame must be extinguished naturally within 30s |
| 5.Sheath | |
| Material: PVC | |
| Color: Black |
規格范圍：HVCT (2~5cores)1.25mm2~8mm2+(0~6cores)0.75mm2~2mm2
